Digital Matter

Barra edge no sim no mapping

Barra edge no sim no mapping

Vanlig pris 820,00 NOK
Vanlig pris Salgspris 820,00 NOK
Salg Utsolgt
Avgift inkludert. Frakt beregnes ved kassen.

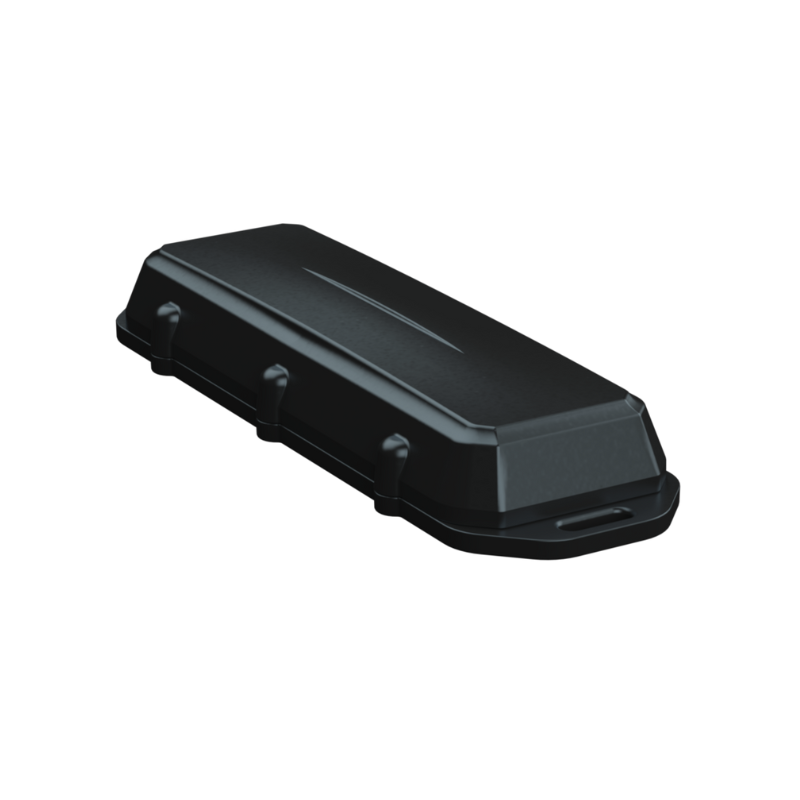

Barra Edge

Low-cost battery-powered indoor/outdoor asset tracker for LTE-M/NB-IoT networks

  • Indoor/Outdoor – GNSS, Wi-Fi AP MAC Address Scanning, and Cell Tower location for indoor/outdoor asset management

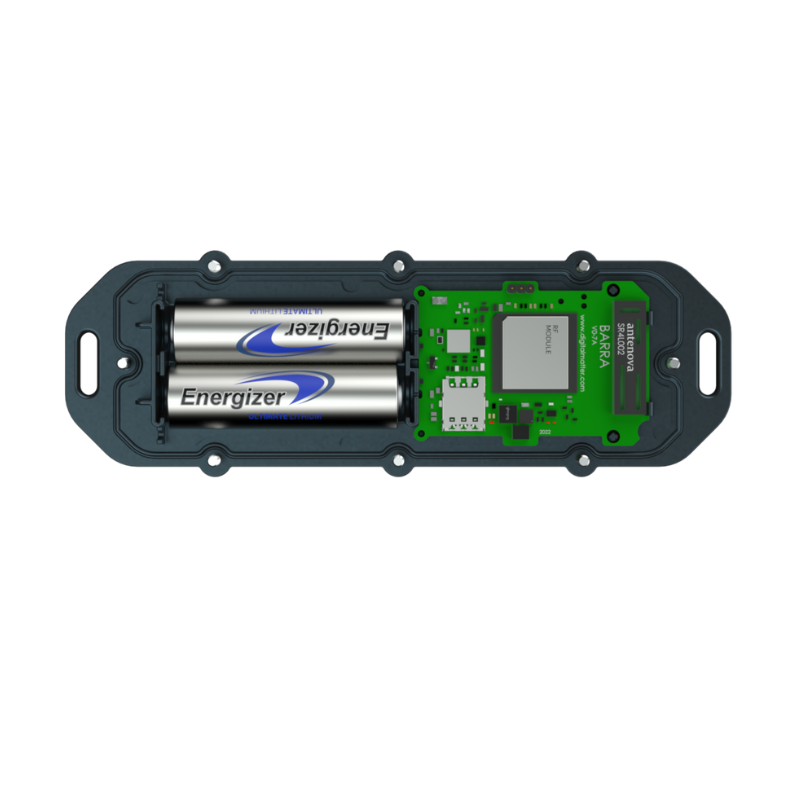

  • Deploy-Once battery life with 10+ years on only 2 x AA user-replaceable batteries
  • Cloud-based Location Solving (versus on-device) for substantial power savings
  • Magnetic Switch for Device Activation and Tamper Detection
  • Slim Form Factor and Ultra-Rugged IP68, IK07 housing
  • LTE-M/NB-IoT Connectivity

Product sheet

MECHANICS / DESIGN

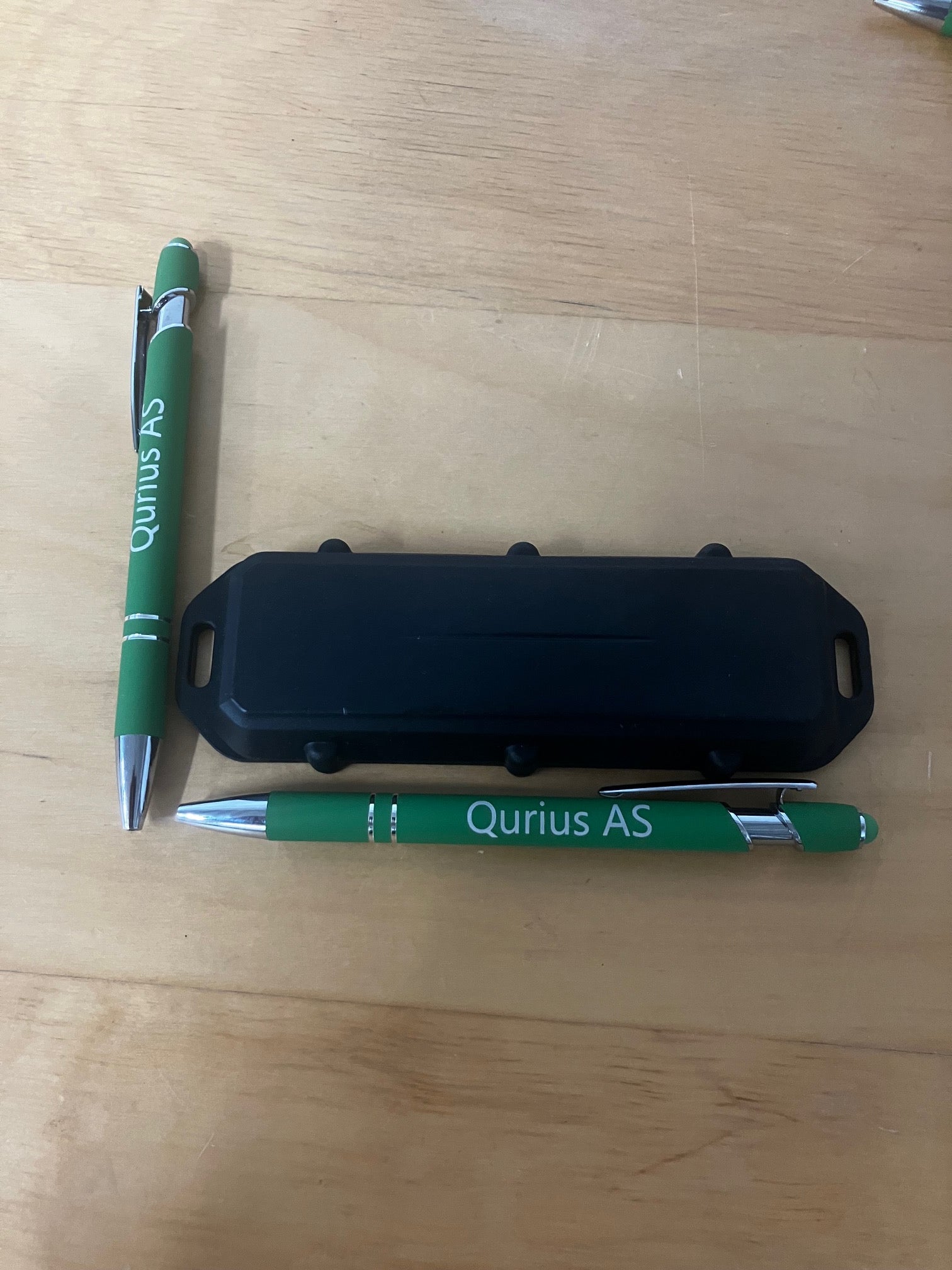

Dimensions 149 x 51 x 21 mm (5.9 x 2.0 x 0.8 in)
Housing Non-branded housing for optional white-labeling
IP/IK Rating Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the Barra Edge can withstand impact, fine dust, and brief submersion
Installation Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws supplied.
Magnetic Switch Magnetic switch enables quick activation and tamper detection
Operating Temperature -30°C to +60°C
Cellular Antenna Internal
GPS Antenna Internal
Wi-Fi Antenna Internal
3-Axis Accelerometer 3-Axis Accelerometer to detect movement and high G-force events
Diagnostic LED Diagnostic LED indicates operation status
Flash Memory Internal flash memory stores approximately 1400 records if device is out of cellular coverage
Speed and Heading Scanning technology used on the Barra Edge does not return speed and heading
On-Board Temperature The device reports internal temperature which provides an indication of ambient temperature



SMARTS

Adaptive Tracking Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Battery Life Monitoring “Battery Low” and “Battery Critical” alert levels
Geofence Alerts The server can use device location to create geofences and alerts if an asset enters or leaves designated locations
Impact Detection Configure impact-detection alerts when G-forces are exceeded by a user-defined threshold
Magnetic Activation Magnetic switch can be used to activate the unit – meaning SIM cards and batteries can be pre-installed, simplifying deployment
Rotation Counting Keeps a count of the number of rotations of the device about the Z axis
Run Hour Monitoring Capture run hours based on movement to understand and optimize asset utilization
Sleep Mode Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage
Tamper Detection Magnetic switch provides an alert if the device is removed from your asset
Theft Recovery Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval
Tip Detection Define a range of angles that constitutes a ‘tipped’ state and configure alerts



DEVICE MANAGEMENT

Flexible Configuration Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application
Device Management Platform Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system
Configuration App Configurable with DM-Link provisioning tool



INTEGRATION

Third-Party Integration HTTPS Webhook



SECURITY

Data Security Military-level AES-256 Encryption from device to OEM Server to protect the integrity and confidentiality of telematics data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.



WARRANTY

Manufacturer’s Warranty Two-year manufacturer’s warranty. Exclusions apply.
Vis alle detaljer
